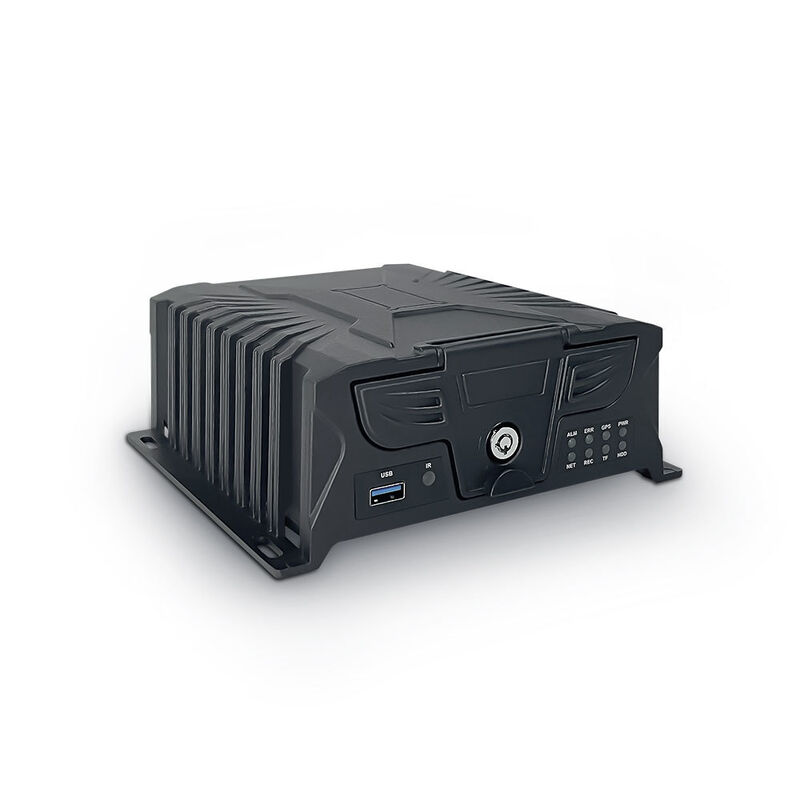

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | शेन्ज़ेन |
| ब्रांड नाम: | Oxiang /OEM |
| प्रमाणन: | CE.RoHS,FCC |
| मॉडल संख्या: | एमडी264 |
|
विस्तार जानकारी |
|||
| नेटवर्क: | 2.4GHz वाईफाई (IEEE 802.11 b/g/n) | लाल LED ब्लिंक: | पावर ठीक है, वाईफाई कनेक्शन की प्रतीक्षा है |
|---|---|---|---|
| शक्ति का प्रकार: | रिचार्जेबल 18650 बैटरी या हार्ड वायर AC12V-24V | उपभोग: | कार्य मोड: 170mA स्टैंडबाय मोड: 200μA |
| वज़न: | 600 ग्राम | पिकअप रेंज: | 5 मीटर |
| कार्यशील आर्द्रता: | <95% | संदेश फ़ंक्शन: | संदेश छोड़ने के कार्य का समर्थन करता है |
| शटर: | 1/25~1/100,000 प्रति सेकंड | सापेक्षिक आर्द्रता: | 85% गैर-संघनक |
| आईआर दूरी: | 3 मीटर | छवि संवेदक: | SC2335/SC233A |
| क्षैतिज कोण: | 140 क्षैतिज कोण | पता कोण: | 110° |
| समारोह: | 3 जी/4 जी/जीपीएस/वाईफाई | शक्ति: | DC12V/2A |
| छवि सेटिंग: | एचडी/एसडी सपोर्ट मिरर को सपोर्ट करें | जलरोधक दर: | आईपी55 |
| कैमरा: | 1 मेगा पिक्सेल, OV9732 (125° वाइड एंगल) | चौड़ा कोण: | 130 डिग्री |
| स्क्रीन का साईज़: | 7 इंच | कैमरा इनपुट संकल्प: | Ahd1080p/720p/cvbs |
| संवेदक प्रकार: | वीडियो गिनती, 98% सटीकता | होस्ट आयाम: | 200(एल) x187(डब्ल्यू) x62(एच) मिमी |
| दबाव: | H.265 | वोल्टेज इनपुट: | 8 से 36V अल्ट्रा-वाइड के अनुकूल |
| सॉफ़्टवेयर समर्थन: | CMSV6 और हमारा निजी मंच | गारंटी: | 12 महीने |
| एसडीके: | दूसरे विकास के लिए निःशुल्क एसडीके | वाईफ़ाई डाउनलोड: | सहायता |
| प्रचालन इंटरफ़ेस: | ग्राफिकल यूजर इंटरफ़ेस (ओएसडी मेनू) | अनुकूलन: | हाँ |
| जलरोधक: | Ip69k | shockproof: | दोहरी विरोधी कंपन |
| कार्य: | लोग काउंटर, 3जी, जीपीएस, जी-सेंसर, यूपीएस | ||
| प्रमुखता देना: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
उत्पाद विवरण
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
![]()
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
